2013 international WorkStar 7600 </br>Shock Absorber

Type:

(Monroe Shocks & Struts Magnum 65145 Monroe Shocks & Struts Brand)

33% OFF



33% OFF

Loading priceLoading...

FREE Shipping on all orders over $99

Notify Me!

Enter your email address below to be notified when this item is back in stock.

Thanks!

We will send you an email once this item is back in stock.

Out of Stock
Rebuild & Return Only

Send us your part
and we will rebuild it!

Provide your email and phone number
below and we will contact you to set it up.

More informationMore Information


Thanks!

We will contact you soon.

Notify Me!

Enter your email address below to be notified when this item is back in stock.

Thanks!

We will send you an email once this item is back in stock.

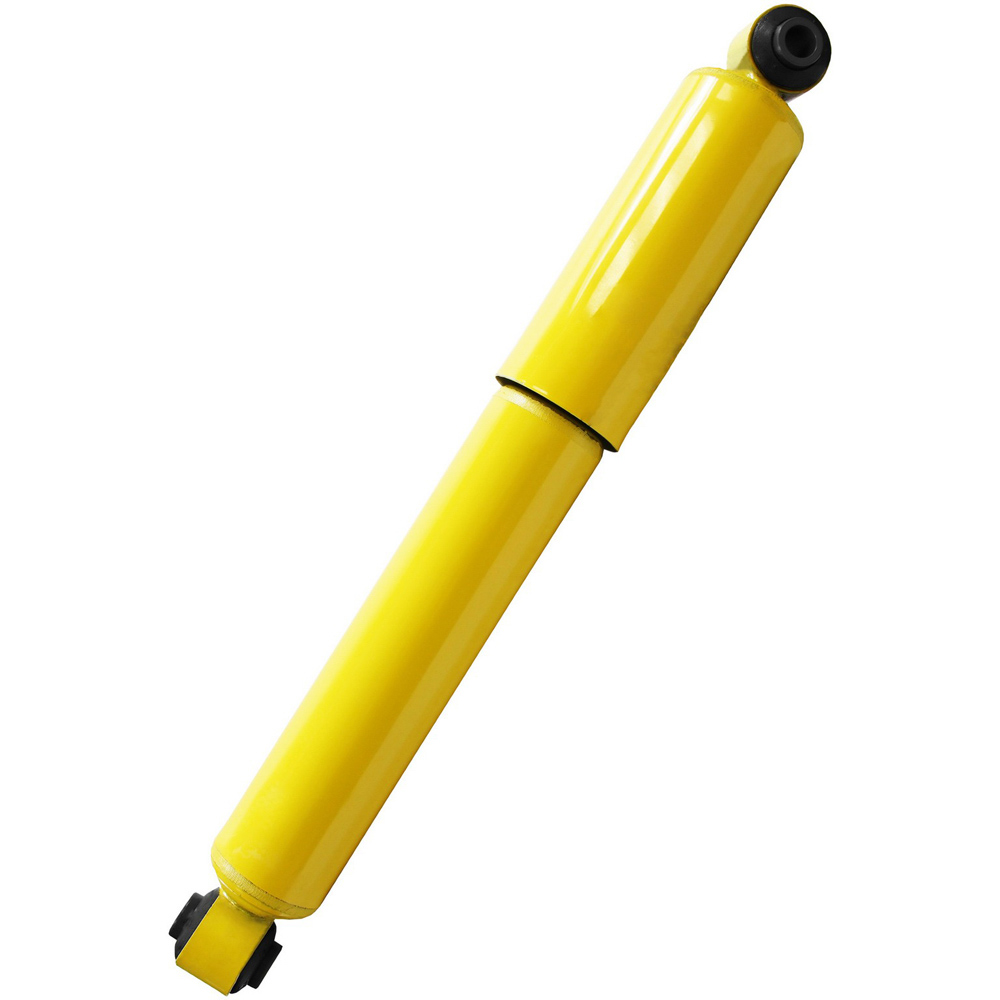

2013 international WorkStar 7600 Shock Absorber
2013 international WorkStar 7600 Shock Absorber
SKU: 75-07544 BCZC
Type: Monroe Shocks & Struts Brand
Fits: w/ 16000 lbs. - 20000 lbs. Multi-Leaf Springs - Front
Fits: w/ 16000 lbs. - 20000 lbs. Multi-Leaf Springs - Front
Loading shipping options
1 Year Unlimited Mileage Warranty
Additional warranty options available*
1 Year Unlimited Mileage Warranty FREE 5 Year Extended Unlimited Mileage Warranty $16.86 Lifetime Unlimited Mileage Warranty $28.10
Also Guaranteed to Fit A 2013 international WorkStar 7600
ABOUT THIS ITEM

This is a New Monroe Shocks & Struts Shock Absorber (Note: Monroe Shocks & Struts Brand. w/ 16000 lbs. - 20000 lbs. Multi-Leaf Springs - Front). This Shock Absorber is guaranteed to fit your 2013 international WorkStar 7600. SKU number 75-07544-bczc

The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy truck suspension systems.Lower Mount Code - LS53; Upper Mount Code - LS53; Dust Shield Included - Yes; Includes Bump Stop - No; Internal Rebound Bumper - No; Hydraulic Lockout - No; Part Description - Shock Absorber; Internal Construction Type - Twin Tube; Adjustable Damping - No; Color - Black; Finish - Painted; Shock Absorber Bore Size - 1-3/4; Foam Cell Design - No; Shaft Diameter - 18; Compressed Length - 13.2188; Dust Shield Material - Metal; Extended Length - 20.2813; Gas Charged - Yes; Lower Mount Type - Loop Bushing and Sleeve Mount - 5/8""-16MM Sleeve ID X 2"" Sleeve OAL; Parts Pack(s) - None; Travel Length - 7.062; Upper Mount Type - Loop Bushing and Sleeve Mount - 5/8"" Sleeve ID X 2"" Sleeve OAL


TECHNICAL SPECIFICATIONS
Part Type
Shock Absorber
SKU
75-07544 BCZC
Brand
Monroe Shocks & Struts
Series
Magnum
Part Number
65145
Type
Monroe Shocks & Struts Brand
Condition
New
Fit Type
EXACT
Warranty
FREE 1 Year Unlimited Mileage Warranty More Information

Additional warranty options available at checkout
1 Year Unlimited Mileage Warranty FREE 5 Year Extended Unlimited Mileage Warranty $16.86 Lifetime Unlimited Mileage Warranty $28.10
Weight
9.8 Pounds
Box Dimensions
Height: 3.13"
Length: 23.38"
Width: 4.13"
Interchange Part Numbers
17507544-101, 17507544101, 3533357C2, 3541456C1, 3541456C2, 3576464C1, 3576464C2, 3596878C2, 3606770C1, 3606770C2, 3816234C1, 5000857, AMS65145, F347355, HD12150161, 65145
UPC
048598170453
Guaranteed Exact Fit for OEM #: 17507544-101, 17507544101, 3533357C2, 3541456C1, 3541456C2, 3576464C1, 3576464C2, 3596878C2, 3606770C1, 3606770C2, 3816234C1, 5000857, AMS65145, F347355, HD12150161, 65145
